MCM 600

Non-returnable

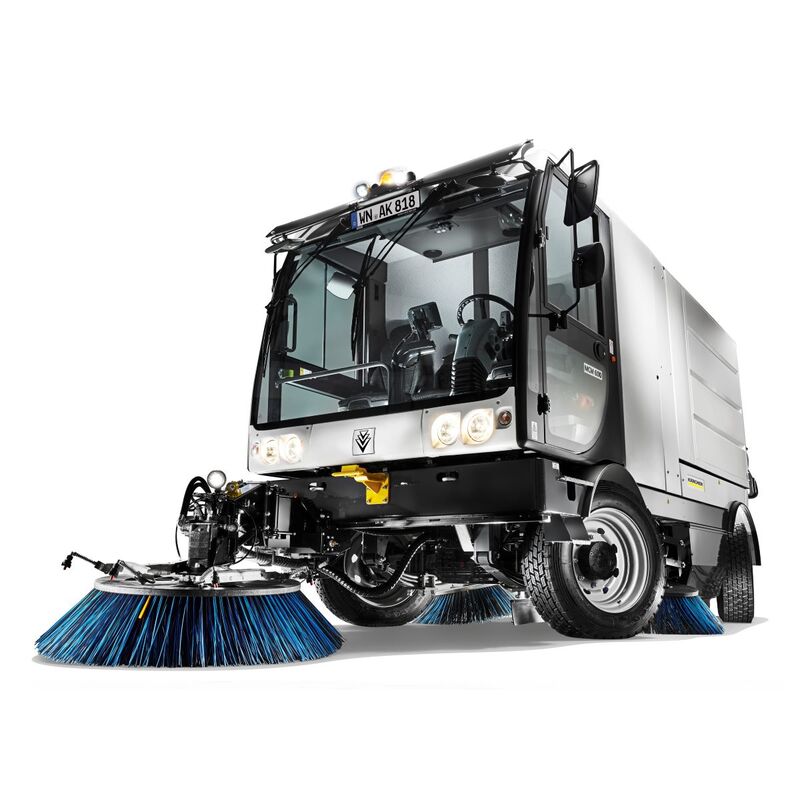

Whether for municipal applications in urban and suburban areas or in industrial facilities with high cleaning requirements, such as foundries, cement plants, mines: Our MCM 600 mechanical street sweeper is the perfect choice for the most demanding sweeping requirements. The combined system with mechanical extraction for large dirt particles, a suction device for lighter materials and a filter system comprising several polyester filters, which effectively filter out fine dust up to PM1 in any conditions, guarantees a high cleaning performance without any dust dispersion. Another contributory factor is the synchronised steering on both axles, which guarantees easy manoeuvrability and maximum sweeping accuracy even when turning. The patented hydraulic system (CDS – Clever Detective System) for the automatic regulation of the ground pressure of the central brush also assists the sweeping accuracy. Thanks to the control panel with colour display and function keys next to the steering wheel, the machine is very easy to operate, plus the cab, which is designed for 3 people, gives users the highest standards of safety and ergonomics.

  • Quantity
Price
$373,971.00
Add to Cart
MCM 600
MCM 600
MCM 600
MCM 600
MCM 600
Product Details
Specifications

General
  • Engine
    Cummins four-cylinder engine (model F.38)
  • Drive Type
    Diesel
  • Power
    115 kW (156 HP)
  • Emission Standard
    Tier 4 Final
  • Diesel particulate filter
    Yes
  • Fuel tank
    200 l (52.8 gal)
  • Steering
    Four-wheel steering
  • Speed
    40 km/h (27 mph)
  • Climbing ability
    25 %
  • Brakes
    Hydrostatic braking system + front and rear hydraulic disc brakes
  • Hydraulic reservoir
    120 l (31.7 gal)
  • Voltage
    24 volt system
  • Unladen/tare weight (empty)
    8300 kg (18298 lb)
  • Total permissible weight
    13000 kg (28660 lb)
  • Axle load
    4700 kg (10362 lb)
  • (L x W x H)
    5924 mm x 2115 mm x 2940 mm (233" x83" x 116")
  • Turning radius (inside)
    2740 mm (108")
  • Turning radius (outside)
    4850 mm (191")
  • Container capacity
    6 m3 (7.8 cu. yd.)
  • Standard emptying height
    340 mm (53")
  • High dump option
    2400 mm (94")
  • Hopper liner
    Stainless steel
  • Fresh water tank
    500 l (132 gal)
  • Mounted water tank option
    Additional 1000 l (264 gal)
  • Tires
    295/60 R22.5
  • Front suspension
    Leaf spring suspension
  • Rear suspension
    Hydraulic self-leveling
  • Material
    Polypropylene - steel wire
  • Working width (2-brush-system)
    2600 mm (102")
  • Area performace (2-brush-system)
    52000 m2h @ working speed of 20km/h (12.4 mph)
  • Working width (3-brush-system)
    3600 mm (142")
  • Area performance (3-brush-system
    72000 m2h @ working speed of 20 km/h (12.4 mph)
