MC 80
- Quantity






With the MC 80 the technology of the very large machines is now used in the compact class of the sweepers. For example, the 800 litre container for swept material with water circulation system is based on computer-aided CFD simulations, the two-brush system has individual brush control with individual lifting, the straight suction channel effectively prevents blockages and the suction mouth is located in the wheel contour where it is protected from impacts. The excellent standard equipment can be complemented with various attachment kits, such as a 3rd side brush, a weed brush, a wander hose or a high-pressure cleaner. In terms of working comfort, the MC 80 scores well with the largest cab in its class, a perfect all-round view and a transparent and ergonomic layout of the operating elements. Practical details such as a lockable storage compartment, bottle holder and USB charging port are also included.
General
- EngineYanmar three-cylinder engine
- Drive TypeDiesel
- Power31 kW (42 HP)
- Emission StandardTier 4 Final
- Diesel particulate filterYes
- Fuel tank42 I (11 gal)
- SteeringArticulating
- Speed25 km/h (16 mph)
- Climbing ability25 %
- BrakesHydrostatic braking system + front and rear hydraulic disc brakes
- Hydraulic reservoir30 l (7.9 gal)
- Voltage12 volt system
- Unladen/tare weight (empty)1875 kg (4133 lb)
- Total permissible weight2500 kg (5525 lb)
- Axle load625 kg (1378 lb)
- (L x W x H)3237 mm x 1070 mm x 1980 mm (127" x 42" x 78")
- Turning radius (inside)910 mm (36”)
- Container capacity0.8 m3 (1 cu. yd.)

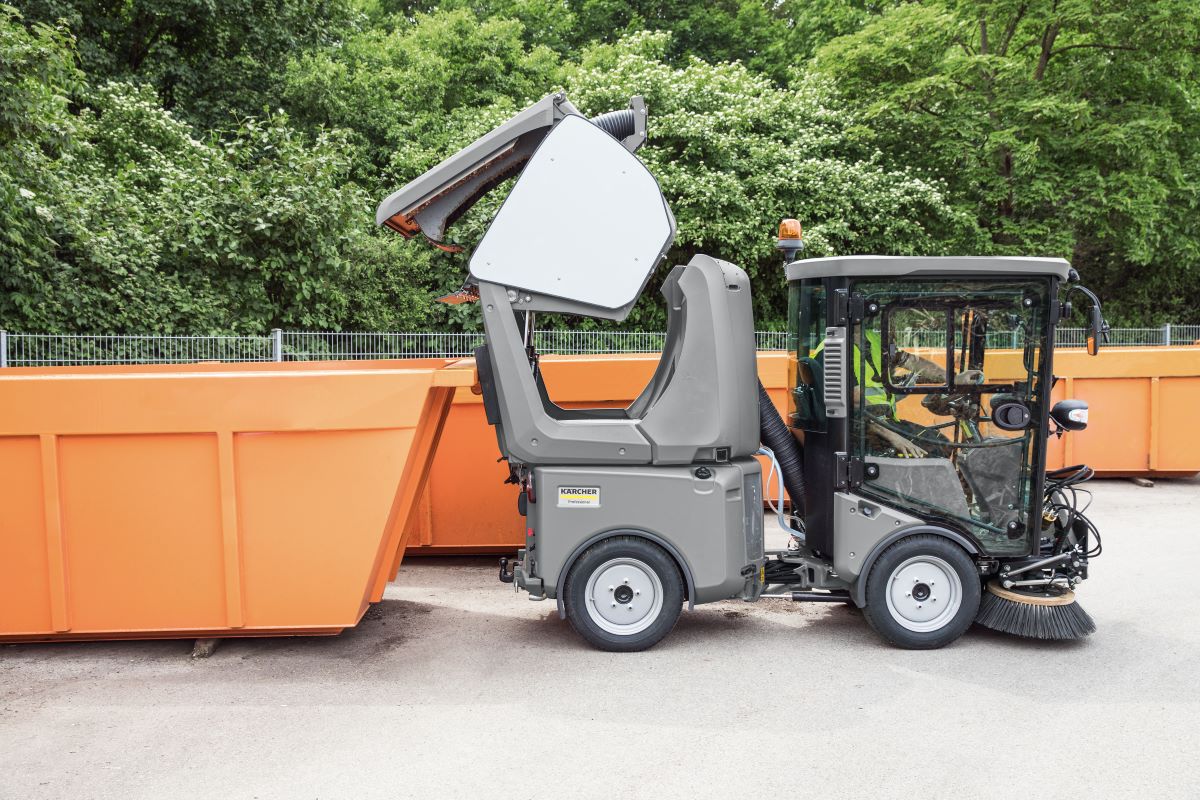

- Standard emptying height1565 mm (61")
- Hopper linerStainless steel
- Fresh water tank190 l (50 gal)
- Recyling waterYes
- Tires23x10.5-12
- MaterialPolypropylene - steel wire
- Working width (2-brush-system)1850 mm (73")
- Area performace (2-brush-system)18500 m2h @ working speed of 10 km/h (6 mph)
- Working width (3-brush-system)2240 mm (88")
- Area performance (3-brush-system22400 m2h @ working speed of 10 km/h (6 mph)
