MC 130
- Quantity

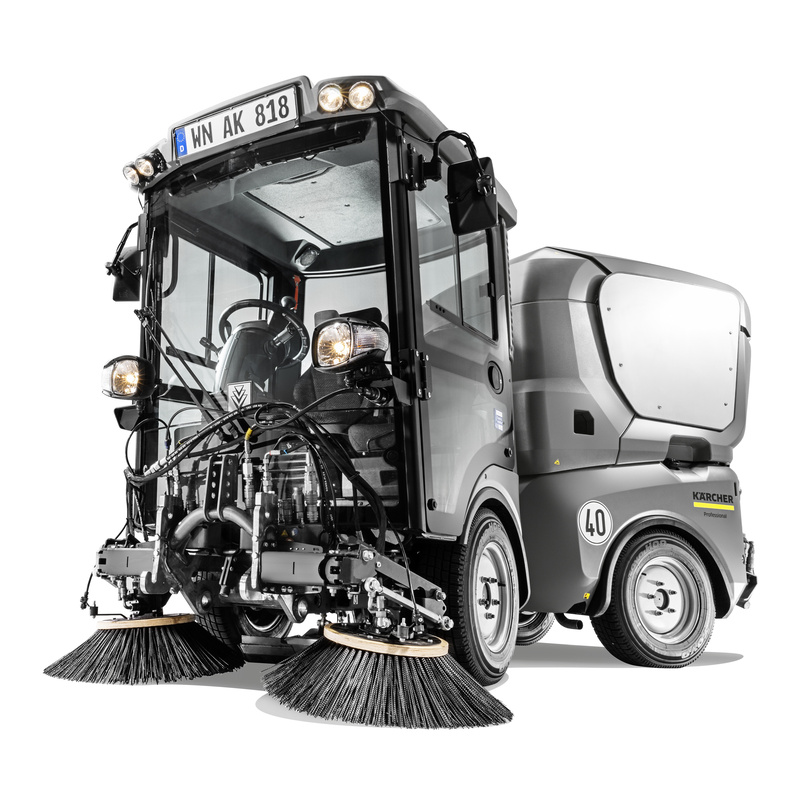

Designed to be highly compact, the MC 130 Plus from the 3.5-tonne class offers impressive diversity in places and purposes of use. From street cleaning and wet cleaning to maintaining green spaces with weed removal through to winter services or transport tasks, the implement carrier scores highly with multifunctionality and maximum performance. The 66 hp, STAGE V-certified diesel engine makes for a drive that is just as powerful and cost-effective. Thanks to an integrated hydraulically tilting attachment frame, all implements can be attached or removed at the rear in the shortest possible time with no tools required. The comfortable two-person cab features excellent all-round visibility and a unique multifunction display with an intuitive layout of control elements, designed with clarity and ergonomics in mind.
General
- EngineKubota four-cylinder engine with DPF
- Drive TypeDiesel
- Power48 kW (66 HP)
- Emission StandardTier 4 Final
- Diesel particulate filterYes
- Fuel tank60 l (15.8 gal)
- SteeringArticulating
- Speed40 km/h (27 mph)
- Climbing ability30 %
- BrakesHydrostatic braking system + front and rear hydraulic disc brakes
- Hydraulic reservoir43 l (11.4 gal)
- Voltage12 volt system
- Unladen/tare weight (empty)2380 kg (5247 lb)
- Total permissible weight3500 kg (7716 lb)
- Axle load1120 kg (2469 lb)
- (L x W x H)3937 mm x 1194 mm x 1981 mm (155" x 47" x 78")
- Turning radius (inside)1210 mm (48")
- Turning radius (outside)2455 mm (96")
- Container capacity1.3 m3 (1.7 cu. yd)
- Standard emptying height1565 mm (61")
- Hopper linerStainless steel
- Fresh water tank195 I (51.5 gal)
- Recyling waterYes
- Tires195/75 R14
- MaterialPolypropylene - steel wire
- Working width (2-brush-system)2450 mm (96")
- Area performace (2-brush-system)24500 m2h @ working speed of 10 km/h (6 mph)
- Working width (3-brush-system)2660 mm (105")
- Area performance (3-brush-system26600 m2h @ working speed of 10 km/h (6 mph)
